The Brady M710 Portable Label Printer is a powerful and user-friendly device that can help you create labels for various purposes. Whether you need to label wires, pipes, equipment, signs, or anything else, the M710 can easily handle it. It can print on over 60 materials, including cold application, low-halide, BradyGlo, metalized, QuickFlag and magnetic labels. In addition to, it also connect to your PC or mobile device via Bluetooth or Wi-Fi and import data and graphics from a USB drive. This article will show you how to use the M710 to create professional-looking labels in simple steps.
1. How do you set up the M710 Portable Label Printer?
Charging the battery:
The M710 has a rechargeable battery that can print thousands of labels fully. To charge the battery, use the AC adapter included with the printer. Plug the adapter into the power port on the back of the printer, and then plug it into an electrical outlet. The battery icon on the color touchscreen will indicate the charging status. You can also use the AC adapter for continuous power if needed.
Loading the label roll:
The M710 can print on various label materials, ranging from 0.25 to 2 inches in width and up to 50 feet long. To load the label roll, open the cover on the printer’s top and insert the label roll into the media holder.
Ensure the label material faces up and the label liner faces down. Align the label edge with the black line on the media holder, and close the cover. As a result, the printer will automatically detect the label size and type.
Connecting the printer:
The M710 can connect to your PC or mobile device via Bluetooth or Wi-Fi and import data and graphics from a USB drive. To connect the printer to your PC, use the USB cable included with the printer. Plug the cable into the USB port on the back of the printer, and then plug it into your PC. You can use the Brady Workstation desktop software to design and print labels from your PC.
To connect the printer to your mobile device, use the Bluetooth or Wi-Fi option on the printer. Press FN + SETUP, and tap Bluetooth or Wi-Fi on the touchscreen. Turn on the Bluetooth or Wi-Fi, and select the network or device you want to connect to. You can use the Express Labels app to design and print labels from your mobile device. To import data and graphics from a USB drive, plug the USB drive into the USB port on the back of the printer. You can access the files on the USB drive from the printer menu.
2. How does the M710 Portable Label Printer work in designing and printing labels?
M710 Portable Label Printer Use the built-in keypad
The M710 has a built-in keypad to enter text, numbers, symbols, and barcodes. The arrow keys are used to move the cursor and the backspace key to delete characters. You can change the font size, style, and alignment by pressing the FN and corresponding number keys. There are the FN and F1-F4 keys to access the label types, objects, settings, and file menu. You can choose from the label types menu from 66-Block, 110-Block, Breaker Box, DesiStrip, Faceplate, Flags, General, Patch Panel, Safety Labels, Terminal Block, Vial and Wire Marker Labels.
An objects menu is used to add barcodes, date/time symbols, graphics or text objects. You can use the settings menu to configure the language, barcode, date/time, font, graphics, pause/cut, unit of measure and Bluetooth. You can use the files menu to save, open, merge, or import files from the USB drive or the connected device.
M710 Portable Label Printer use a desktop software:
The M710 is compatible with the Brady Workstation desktop software, which offers a range of features and tools to design and print labels. You can download the software from the Brady website and install it on your PC.
A software is used to create custom labels or use the pre-designed templates for various applications, and also import data and graphics from your PC or scan and print labels with barcode scanners and software kits. You can connect the printer to the software via the USB cable and print your labels directly from the software.
M710 Portable Label Printer use mobile app:

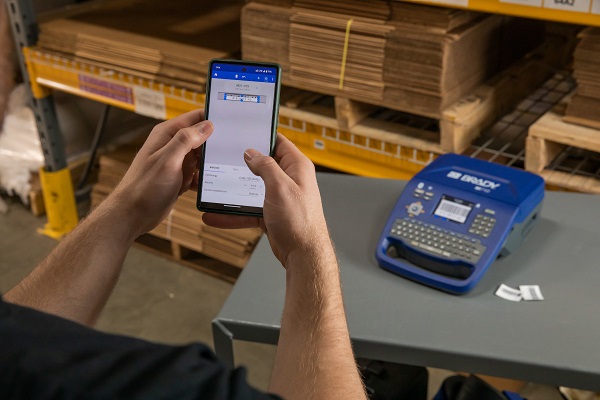

The M710 is also compatible with the Express Labels mobile app, which allows you to design and print labels from your smartphone or tablet. You can download the app from the App Store or Google Play and install it on your device.
Use the app to create custom labels or use the pre-designed templates for various applications and also import data and graphics from your device or scan and print labels with barcode scanners and software kits. You can connect the printer to the app via Bluetooth or Wi-Fi and print your labels directly from the app.
3. How can the M710 Portable Label Printer be maintained?
Cleaning the printer:
It would help to clean the printer regularly to ensure the best performance and print quality. You can use the cleaning cards included with the printer or purchase them separately. To clean the printer, turn off the printer and open the cover.
Remove the label roll, and insert the cleaning card into the media holder. Seal the lid, and turn on the printer. The printer will automatically feed the cleaning card through the print head and the cutter. Repeat this process until the cleaning card comes out clean. Remove the cleaning card and reload the label roll.
Updating the firmware:
To keep the printer current, you should check for firmware updates periodically.However, you can download the latest firmware from the Brady website and save it on a USB drive.
To update the firmware, plug the USB drive into the USB port on the back of the printer. Press FN + SETUP, and tap Files on the touchscreen. Tap USB, and select the firmware file. Thump Update, and observe the instructions on the screen. The printer will restart after the Update is complete.
Frequently Asked Questions about Brady M710 Portable Label Printer
1. How do I change the label material?
A: To change the label material, open the cover on the printer’s top and remove the label roll from the media holder. Insert the new label roll into the media holder, and ensure the label material faces up and the label liner faces down. Align the label edge with the black line on the media holder, and close the cover. The printer will automatically detect the label size and type.
2. How do I cut the labels?
A: The M710 has an automatic label cutter that can cut the labels after a print job or after each label. You can choose between Cut After Job, Cut After Label, or No Cut. You can also manually cut the labels by pressing the Cut button on the printer.
3. How do I adjust the print contrast?
A: The M710 has a print contrast setting that can improve the print quality on different label materials. You can choose between Light, Normal, or Dark.
4. How do I calibrate the printer?
A: The M710 has a calibration function that can optimize the printer’s performance and accuracy. You can calibrate the printer by pressing FN + SETUP and tapping Calibration on the touchscreen. You can choose between auto and manual Calibration.
5. How to use the Brady M710 Portable Label Printer?
A: To use the Brady M710 Portable Label Printer, you must set up the printer, design and print labels, and maintain the printer. You can use the built-in keypad, the desktop software, or the mobile app to create labels
Final Thoughts:
The Brady M710 Portable Label Printer is a convenient and efficient tool for creating labels for various purposes. Its fast printing speed, wide material compatibility, and easy connectivity make it an ideal companion for labeling needs. Whether you’re in the field, the office, or the warehouse, the M710 ensures clear, durable, and professional labeling. Here you are reading about The Brady M710 portable lable printer, but if you are interested in reading about The Best Apple Portable Display, click here.
